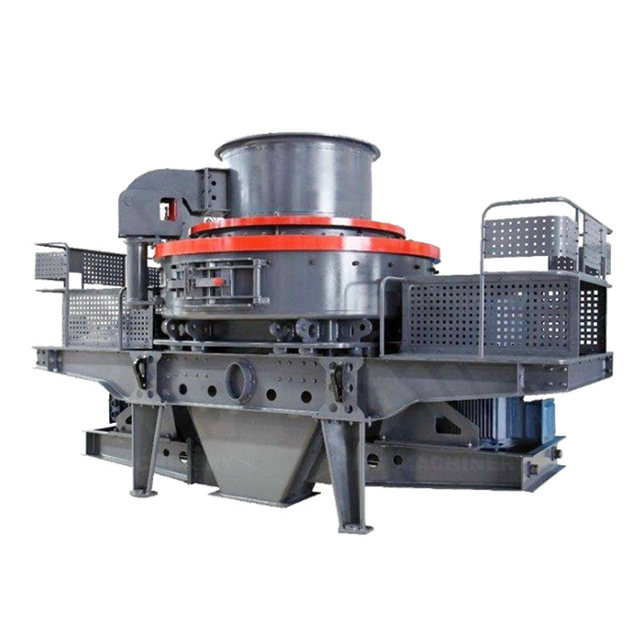

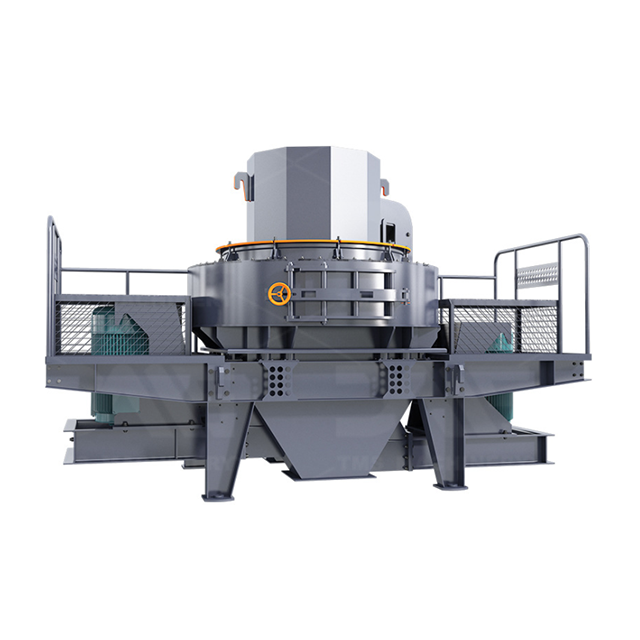

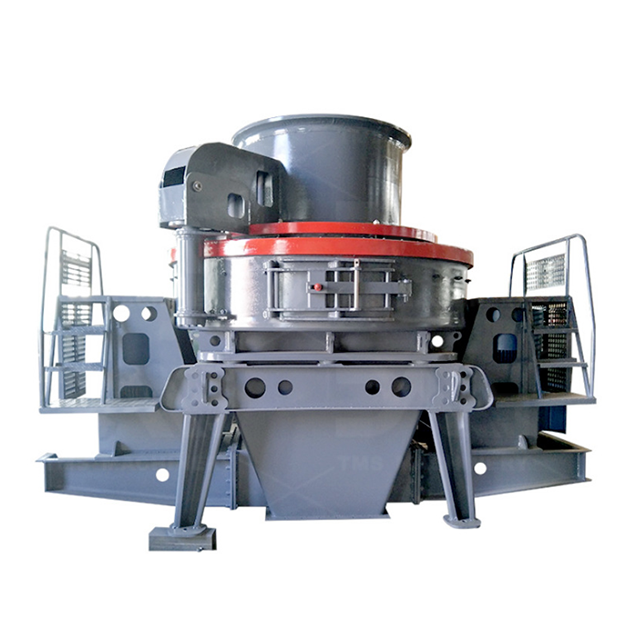

VSI Impact Sand Maker

The VSI impact crusher is a high-level sand-making equipment developed by our company based on the introduction of advanced German technology, combined with the actual situation of domestic sand-making production, and after several technical improvements.
Feed particle size: ≤50mm
Production capacity: 60-520t/h
Description
Description

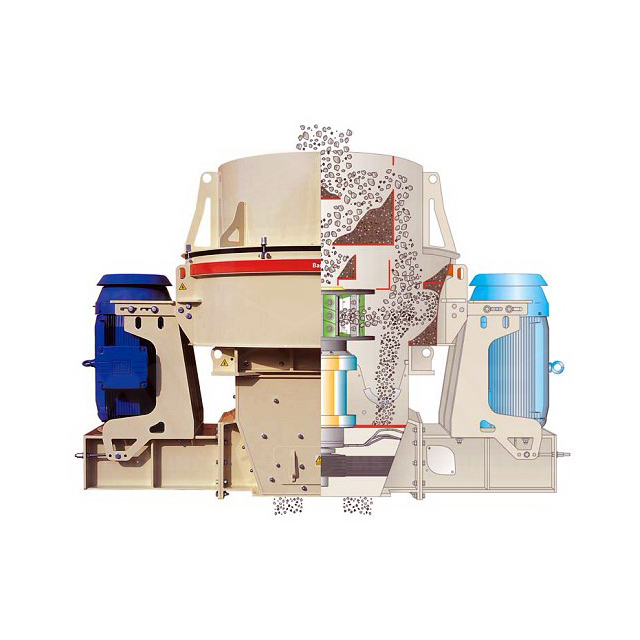

working principle
VSI sand making machine uses advanced selective crushing and cleavage crushing principles to directly apply sufficient kinetic energy to the material, and converts the kinetic energy into the crushing energy required to overcome the material through impact and crush it. The material basically breaks along its natural texture and cleavage surfaces, with good grain shape and low self-consumption..

Performance characteristics

1. Stone-forged iron crushing cavity, higher crushing efficiency.

2. Deep cavity rotor design, larger throughput.

3. Hydraulic cover opening device, convenient for inspection and maintenance.

4. Thin oil lubrication solution provides a wider speed range.

Technical Parameters

Model

VSI7611

VSI8518

VSI9526

VSI1140

Capacity (t/h)

Ring and center feeding

120-180

170-260

260-340

350-480

Center feeding

60-90

100-130

150-190

180-260

Feeding size (mm)

Soft material

35

40

45

50

Hard material

30

35

40

45

Rotation speed (r/min)

1700-1890

1520-1690

1360-1510

1180-1310

Power (KW)

55×2

90×2

132×2

200×2

Note: Technical data are subject to change without prior notice.
