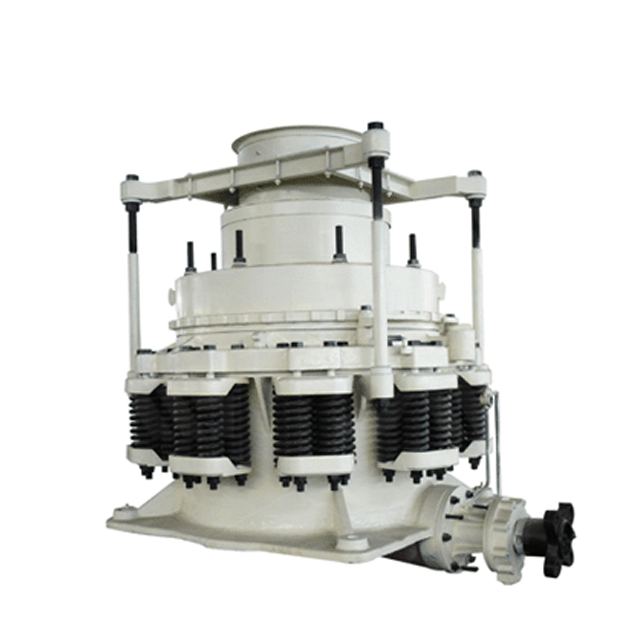

Spring Cone Crusher

spring cone crusher is mainly used for medium and fine crushing of materials with medium or above hardness, such as basalt, granite, river pebbles, iron ore, etc. It is widely used in metallurgy, building materials, mining and other industries.
Description
Description

working principle

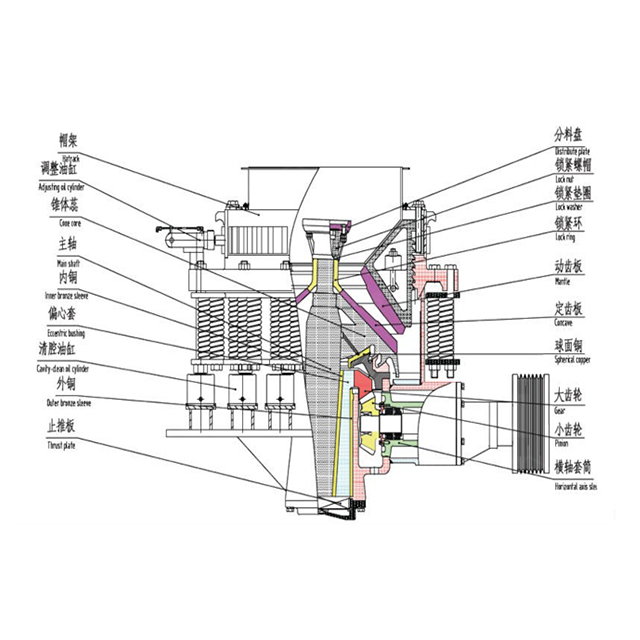

When the spring cone crusher is working, the motor drives the eccentric sleeve to operate through the elastic coupling, transmission shaft and a pair of bevel gears, forcing the main shaft in the eccentric sleeve to drive the crushing wall to perform a swing motion, so that the crushing wall is sometimes close to the rolling mortar wall. Sometimes far away from the rolling mortar wall, the material is continuously squeezed, bent and impacted in the crushing cavity to be broken. The crushed materials are discharged from the bottom discharge port under the action of its own weight.

Performance characteristics

1. Reliable structure and stable performance.

2. The wearing parts have long service life and low operating costs.

3. Use dry oil sealing method to isolate dust from lubricating oil and extend the service life of the equipment.

4. The thin oil station continuously supplies oil and lubrication to reduce downtime and maintenance time.

Technical Parameters

Type

Max input (mm)

Adjusting range of output (mm)

Capacity (t/h)

Power (KW)

Dimension (mm)

PYB

600

65

12-25

12-25

30

2800x1300x1700

PYD

35

3-15

5-23

PYB

900

115

15-50

50-90

55

3050x1640x2350

PYZ

60

5-20

20-65

PYD

40

3-13

15-50

PYB

1200

145

20-50

110-200

110

4152x2300x2980

PYZ

100

8-26

50-150

PYD

50

3-15

18-105

PYB

1750

215

25-60

280-480

160

4870x3800x4192

PYZ

185

10-30

115-320

PYD

85

5-15

75-230

PYB

2200

300

30-60

590-1000

260-280

7705x3430x4852

PYZ

230

10-30

200-580

PYD

100

5-15

120-340

Note: Technical data are subject to change without prior notice.
