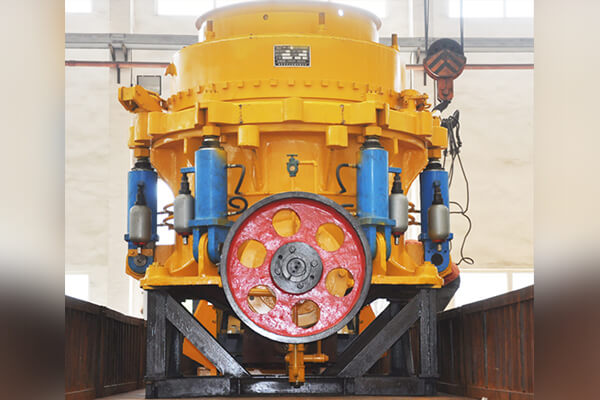

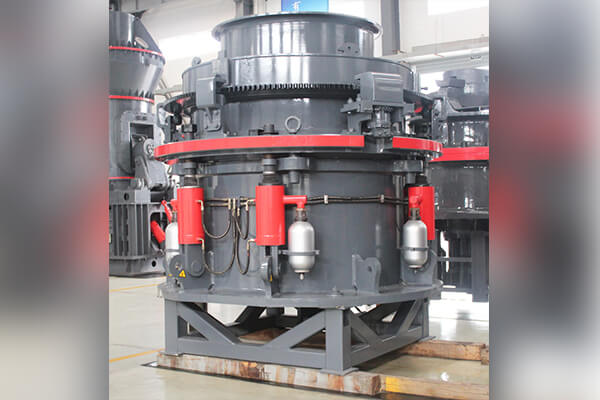

Multi-Cyclinder Hydraulic Cone Crusher

hydraulic cone crusher is a high-performance crusher designed by absorbing advanced German technology and combining the performance of Chinese metal materials. It is widely used in mining, metallurgy, building materials, chemical industry, ceramics and other industries. It can process materials with medium or above hardness such as basalt, andesite, diabase, pebbles,quartz stone, wollastonite, granite, gold ore, iron ore, etc. , fine crushing operations.
Feed particle size: ≤350(mm)
Production capacity: 90-1200(t/h)
Description
Description

working principle
The moving cone of the hydraulic cone crusher performs a swing motion driven by the eccentric sleeve. The material is squeezed and rolled in the crushing cavity between the crushing wall and the rolling mortar wall. It is subjected to forces from multiple directions and is crushed according to its own force. The texture is crushed and polished to form stable stone particles. Materials that meet the discharging requirements fall and are discharged from the swing gap of the crushing wall, while the remaining materials continue to be crushed until they meet the final requirements.

Performance characteristics

1. It adopts a fixed main shaft and small spherical bearing structure. The crushing stroke, crushing speed and crushing cavity type are reasonably combined. The crushing efficiency is high and the production capacity is significantly improved compared to traditional cone crushers.

2. The proprietary "inter-particle lamination crushing" principle significantly increases the cube content in the finished product and greatly increases the number of fine-grained materials, which well meets the requirements for the use of high-quality aggregates.

3. When unbreakable objects such as iron blocks enter the crushing chamber, the hydraulic protection device will automatically release them and then automatically reset to normal operation.

4. The discharge port adjustment and cavity cleaning adopt hydraulic technology, which is convenient and quick to operate, reduces downtime and improves work efficiency.

Technical Parameters

Model


Cavity


Standard Type


Short Type


Power


Capacity (t/h)


Feeding Size (mm)


Min Discharging Size (mm)


Feeding Size (mm)


Min Discharging Size (mm)


(kw)


HP200


Super coarse






132-200


90-250


Coarse


185


19


76


10


Medium


125


17


54


6


Fine


95


13


23


6


Super Fine




10


5


HP300


Super coarse


230


25




180-250


115-440


Coarse


210


20


75


10


Medium


150


15


50


8


Fine


105


10


20


6


Super Fine




20


6


HP400


Super coarse


295


30




280-355


140-630


Coarse


250


25


90


10


Medium


195


20


50


8


Fine


110


14


40


6


Super Fine




30


6


HP500


Super coarse


330


30




355-450


175-790


Coarse


285


25


90


13


Medium


200


20


55


10


Fine


133


16


40


8


Super Fine




35


6


HP800


Super coarse


353


32




550-630


260-1200


Coarse


297


32


155


13


Medium


267


25


92


10


Fine


219


16


33


6


Super Fine





Note: Technical data are subject to change without prior notice.
