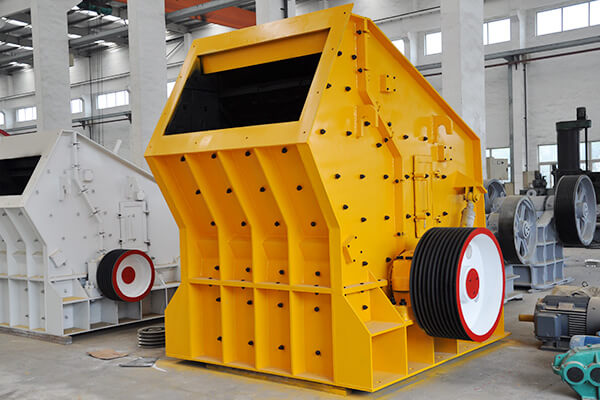

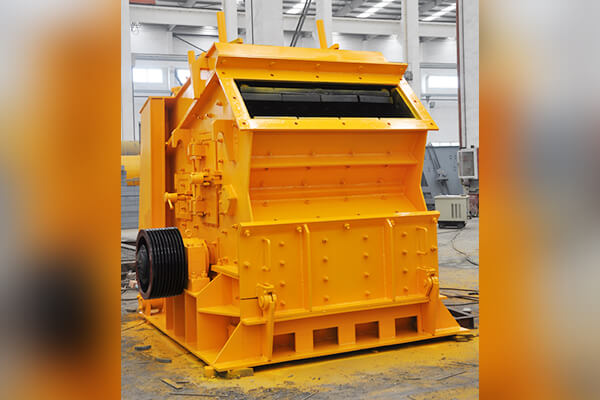

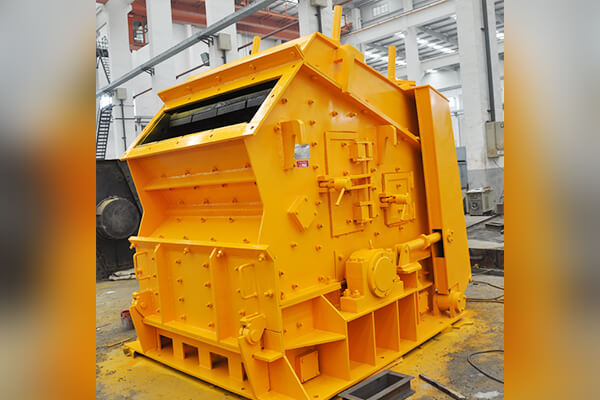

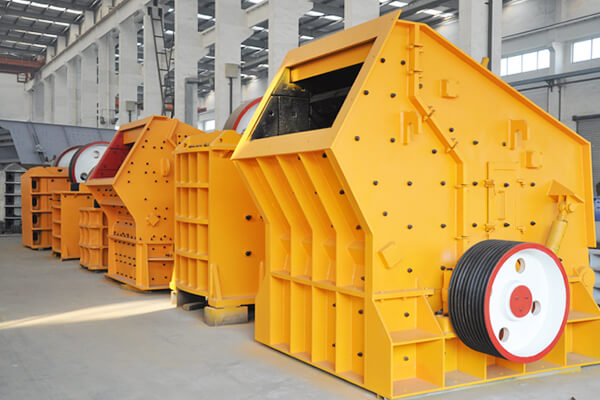

Impact Crusher

impact crusher is used for medium and fine crushing of materials with a compressive strength not exceeding 300MPa, such as granite, marble, limestone, concrete, etc. It is mainly used in the production of sand and gravel for construction in highways, railways, water conservancy, electric power, construction and other industries.
Feed particle size: ≤800mm
Production capacity: 30-800t/h
Description
Description

working principle
When the PF impact crusher is working, the motor drives the rotor to rotate at high speed. After the material enters the crushing cavity, it collides with the plate hammer on the rotor and is broken. Then it is thrown to the impact device for crushing again, and then bounces back from the impact liner. The plate hammer action area is re-crushed, and this process is repeated. The materials are repeatedly crushed in the crushing chamber from large to small until the materials are crushed to the required particle size and discharged from the discharge port.

Performance characteristics

1. The product is cubic in shape and has good grain shape;

2. The discharge particle size is adjustable to simplify the crushing process;

3. High chromium plate hammer, impact resistance and wear resistance;

4. The equipment has a simple structure and is easy to operate and maintain.

Technical Parameters

Model

Specification (mm)

Feed  opening (mm)

Max feeding size (mm)

Capacity (t/h)

Power (KW)

Dimension (mm)

PF-1007

Φ1000×700

400×730

300

30-70

37

2330×1660×2310

PF-1010

Φ1000×1050

400×1080

350

50-90

55

2380×1750×2410

PF-1210

Φ1250×1050

400×1080

350

70-130

110

2680×2060×2805

PF-1214

Φ1250×1400

400×1430

350

100-180

132

2680×2260×2805

PF-1315

Φ1320×1500

860×1520

500

130-250

200

3180×2750×2660

PF-1320

Φ1300×2000

993×2000

500

165-320

250

3200×29800×2700

PF-1520

Φ1500×2000

830×2040

700

300-550

315

3960×3572×3350

PF-1820

Φ1800×2000

1260×2040

800

600-800

630

4420×3870×4010

Note: Technical data are subject to change without prior notice.
