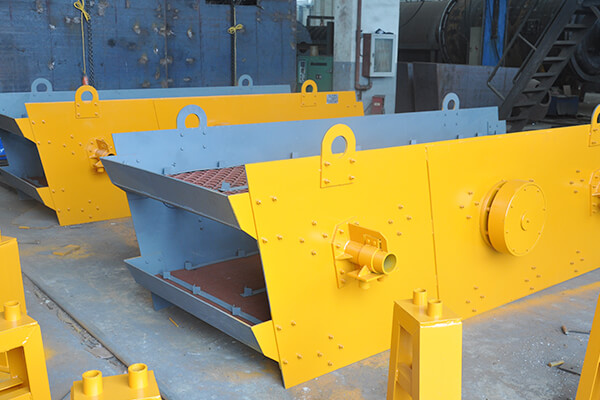

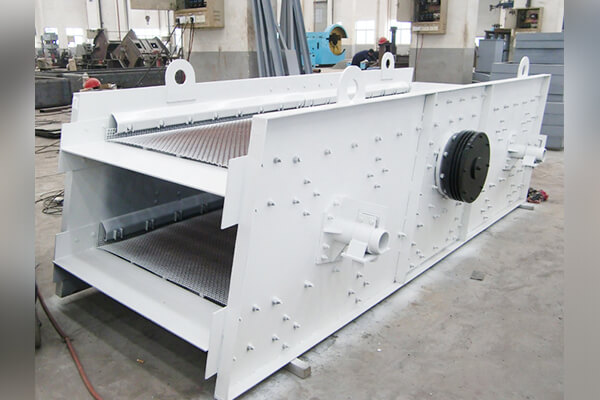

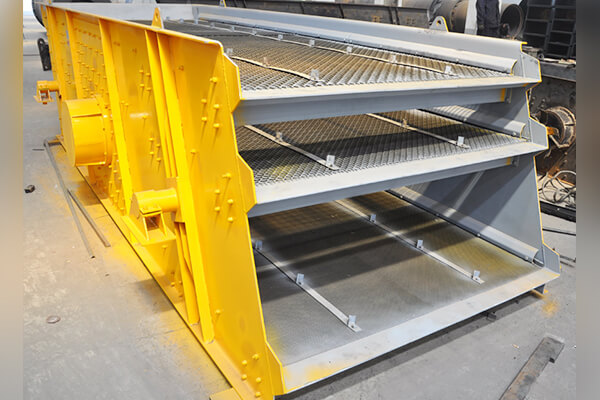

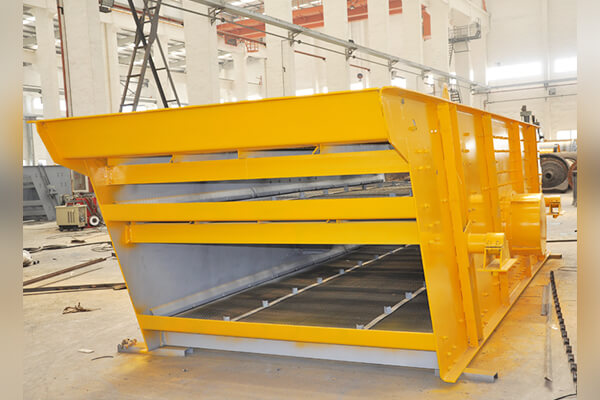

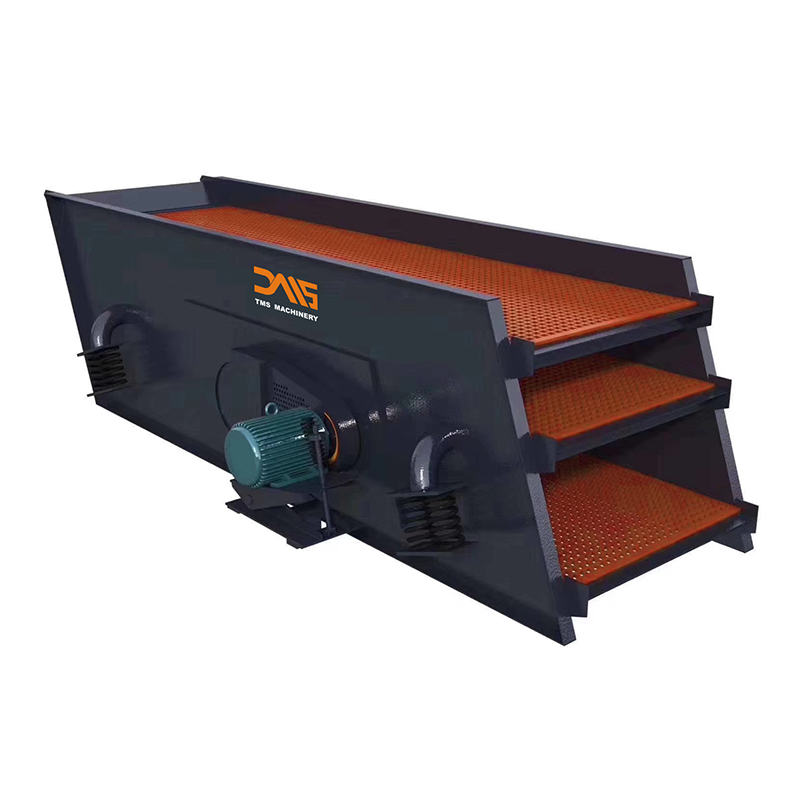

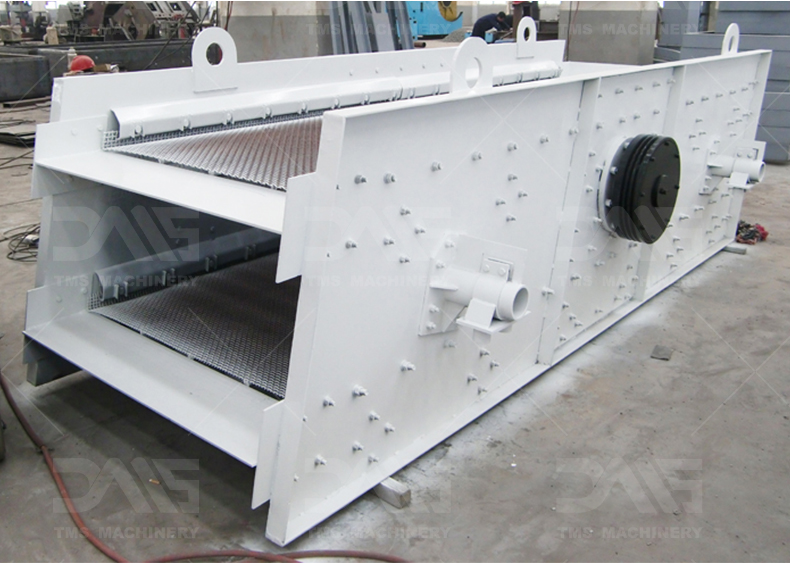

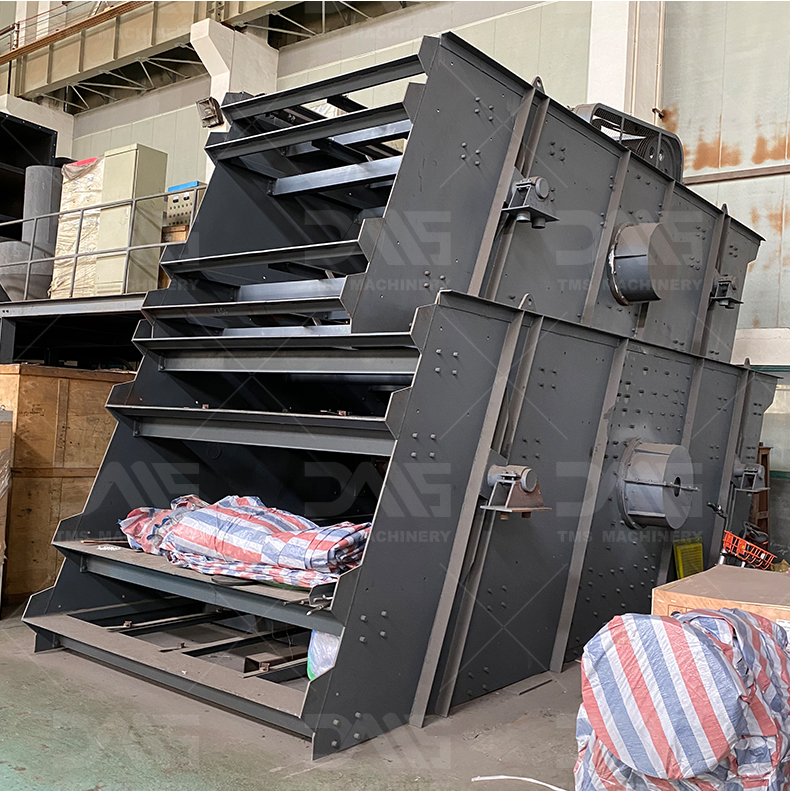

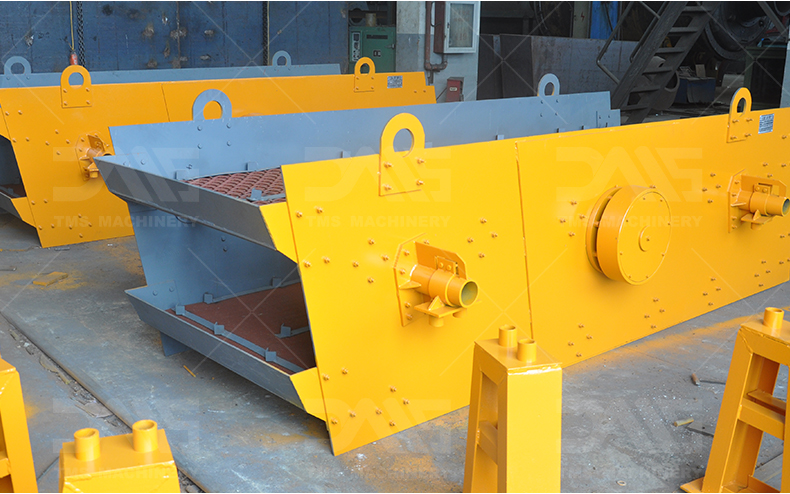

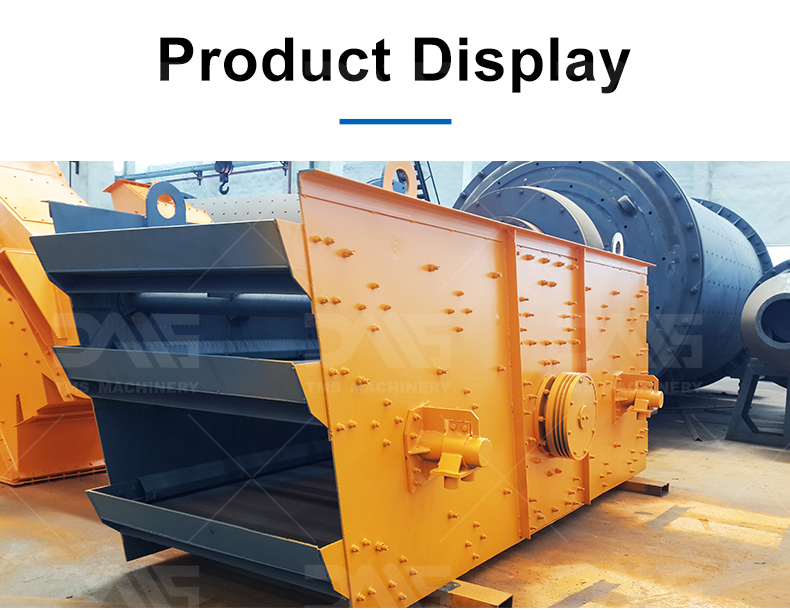

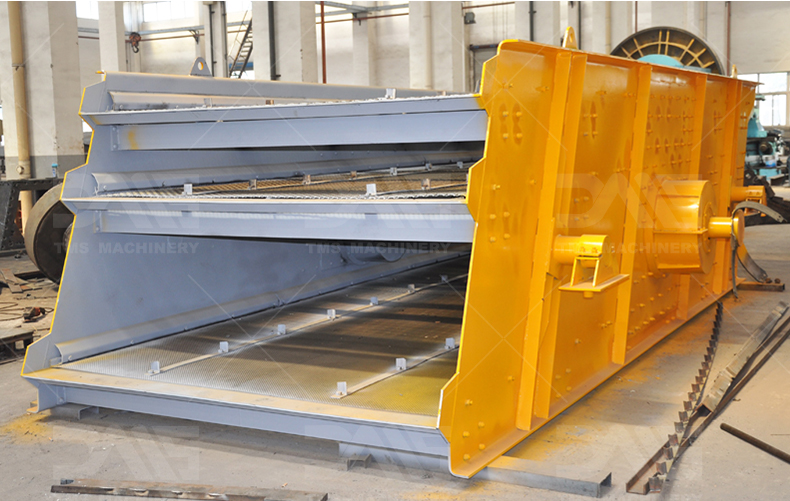

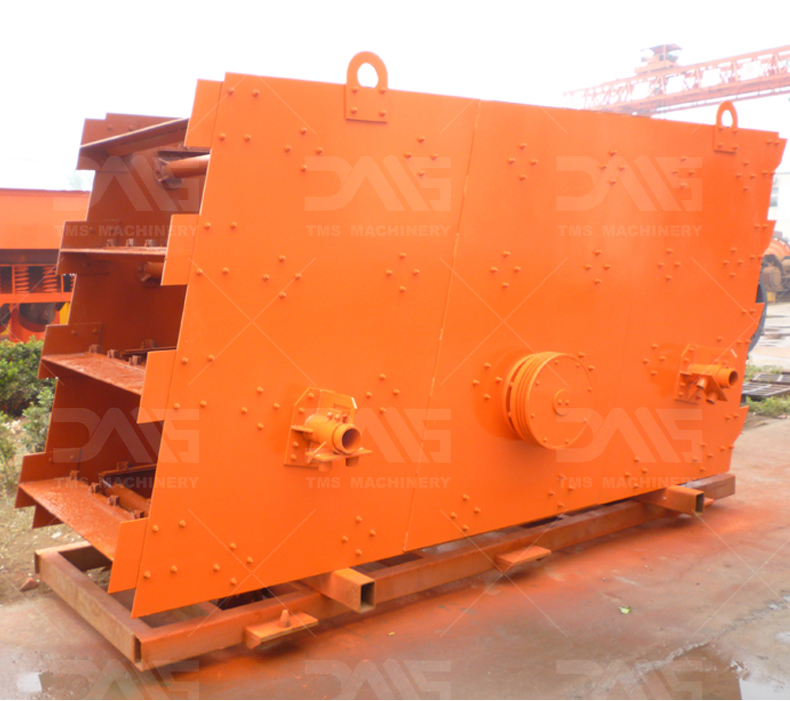

Inclined Vibrating Screen

Inclined vibrating screen is a multi-layer, high-efficiency vibrating screening equipment. It can screen materials into products of various specifications according to particle size. It is widely used in product screening and classification in mining, building materials, metallurgy, energy, chemical and other industries.
Feed particle size: ≤400(mm)
Production capacity: 75-1300(t/h)
Description
Description

working principle
The motor of the circular vibrating screen drives the eccentric shaft of the exciter to rotate at high speed through the triangular belt. The centrifugal inertial force generated excites the screen body to produce a circular motion of a certain amplitude. The materials are continuously thrown on the inclined screen surface by the impulse transmitted by the screen body. When the material meets the screen surface, the particles smaller than the screen hole pass through the screen, thereby achieving classification.

Performance characteristics

1. Strong exciting force, high screening efficiency and large processing capacity;

2. Reliable structure, long service life, low noise and low power consumption;

3. The material screening flow line is long and the screening specifications are many;

4. Simple structure, easy to use and maintain.

Technical Parameters

Model

Sieve layer

Sieve area

Mesh size(mm)

Max. feeding size(mm)

Processing capacity (m3/h)

Vibrating  Frequency  (r/min)

Double amplitude  (mm)

Motor power (kw)

Sieve obliquity

Sieve specification (mm)

Dimensions (LxWxH) (mm)

2YK1225

2

6

4-50

200

8-60

800-970

8

6P   5.5KW

20

1200×2500

2930x1860x870

3YK1225

3

9

4-50

200

10-70

800-970

8

6P   5.5KW

20

1200×2500

3070x1860x1210

2YK1230

2

7.2

4-50

200

12-78

800-970

8

6P   7.5LW

20

1200×3000

3430x1860x870

3YK1230

3

10.8

4-50

200

13-80

800-970

8

6P   7.5KW

20

1200×3000

3570x1860x1210

2YK1237

2

8.88

4-50

200

15-86

800-970

8

6P   7.5KW

20

1200×3700

4050x1860x870

3YK1237

3

13.32

4-50

200

16-90

800-970

8

6P   7.5KW

20

1200×3700

4270x1860x1210

2YK1535

2

10.5

5-50

200

20-125

800-970

8

6P   11KW

20

1500×3500

4120x2210x1230

3YK1535

3

15.75

5-50

200

21-125

800-970

8

6P   11KW

20

1500×3500

4360x2210x1610

2YK1545

2

13.5

5-50

200

22-150

800-970

8

6P   11KW

20

1500×4500

5120x2210x1230

3YK1545

3

20.25

5-50

200

22-150

800-970

8

6P   15KW

20

1500×4500

5360x2210x1610

4YK1545

4

27

5-50

200

22-155

800-970

8

6P   15KW

20

1500×4500

5930x2210x2060

2YK1548

2

14.4

5-50

200

22.5-162

800-970

8

6P   11KW

20

1500×4800

5420x2210x1230

3YK1548

3

21.6

5-50

200

22.5-162

800-970

11

6P   15KW

20

1500×4800

5660x2210x1610

4YK1548

4

28.8

5-50

200

22.5-162

800-970

8

6P   18.5KW

20

1500×4800

6230x2210x2060

2YK1848

2

17.28

5-80

200

25-206

750

8

6P  18.5KW

20

1800×4800

5420x2550x1420

3YK1848

3

25.92

5-80

200

32-276

750

8

6P   18.5KW

20

1800×4800

5660x2550x1780

4YK1848

4

34.56

5-80

200

32-285

750

8

6P   22KW

20

1800×4800

6290x2550x2160

2YK1854

2

19.44

5-80

200

32-312

800-970

8

6P   22KW

20

1800×5400

5960×2550×1420

3YK1854

3

29.16

5-80

200

32-312

800-970

8

6P   22KW

20

1800×5400

6260×2550×1780

4YK1854

4

38.88

5-80

200

32-336

800-970

8

6P  22KW

20

1800×5400

6830×2550×2160

2YK2160

2

25.2

5-100

200

50-475

970

8

6P   30KW

20

2100×6000

6720×2840×1530

3YK2160

3

37.8

5-100

200

50-475

970

8

6P  30KW

20

2100×6000

7030×2840×1910

4YK2160

4

50.4

5-100

200

50-497

970

8

6P   37KW

20

2100×6000

7300×2840×2380

2YK2460

2

28.8

5-100

200

65-550

970

8

6P   30KW

20

2400×6000

7020×3140×1530

3YK2460

3

43.2

5-100

200

70-620

970

8

6P   37KW

20

2400×6000

7300×3140×1910

4YK2460

4

57.6

5-100

200

80-680

970

8

6P   45KW

20

2400×6000

7600×3140×2380

2YK2870

2

39.2

5-100

200

120-680

750

8

8P   22×2KW

20

2800×7000

7600×4320×1620

3YK2870

3

58.8

5-100

200

180-720

750

8

8P   22×2KW

20

2800×7000

7800×4320×2120

2YK3072

2

43.2

5-100

200

200-700

750

8

8P   22×2KW

20

3000×7200

7800×4520×1750

3YK3072

3

64.8

5-100

200

230-800

750

8

8P   22×2KW

20

3000×7200

8000×4520×2300

Note: Technical data are subject to change without prior notice.
