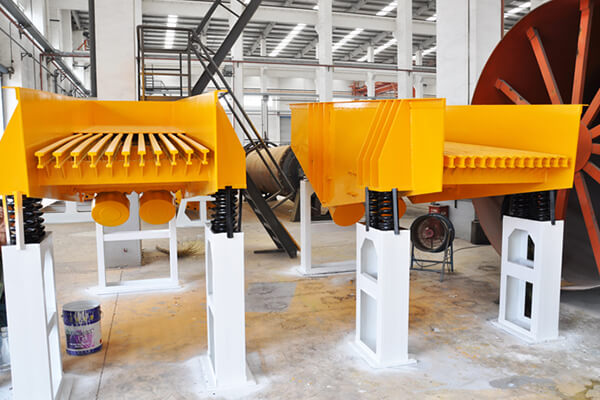

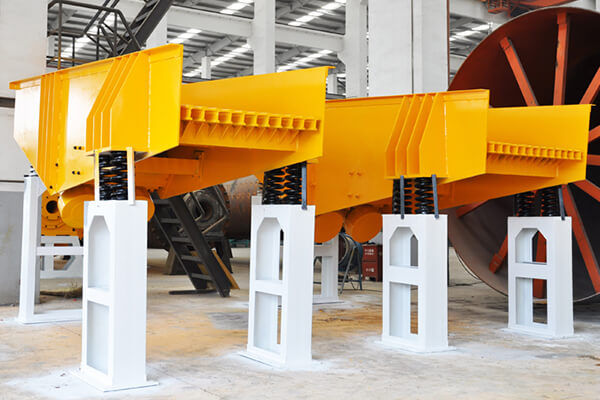

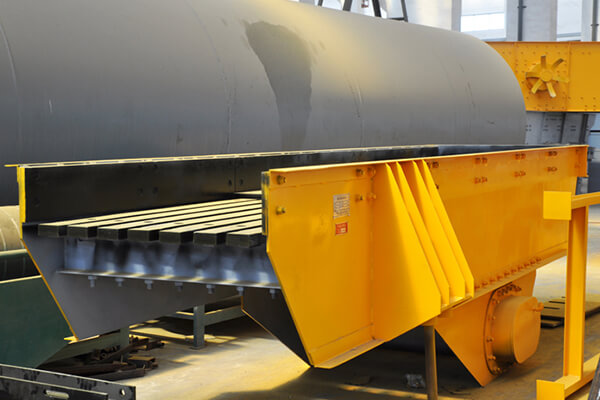

Vibrating Feeder

Vibrating feeder is also called vibrating feeder. In the production process, lumpy and granular materials can be fed evenly, regularly and continuously from the storage bin to the material receiving device. In the sand and gravel production line, the materials can be continuously and evenly graded for the crushing machinery.

Online consultation

Description

working principle

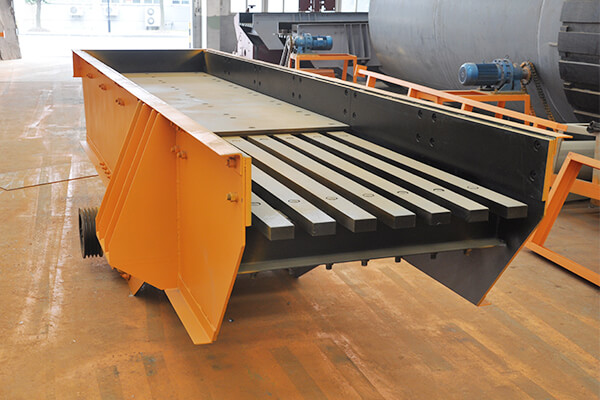

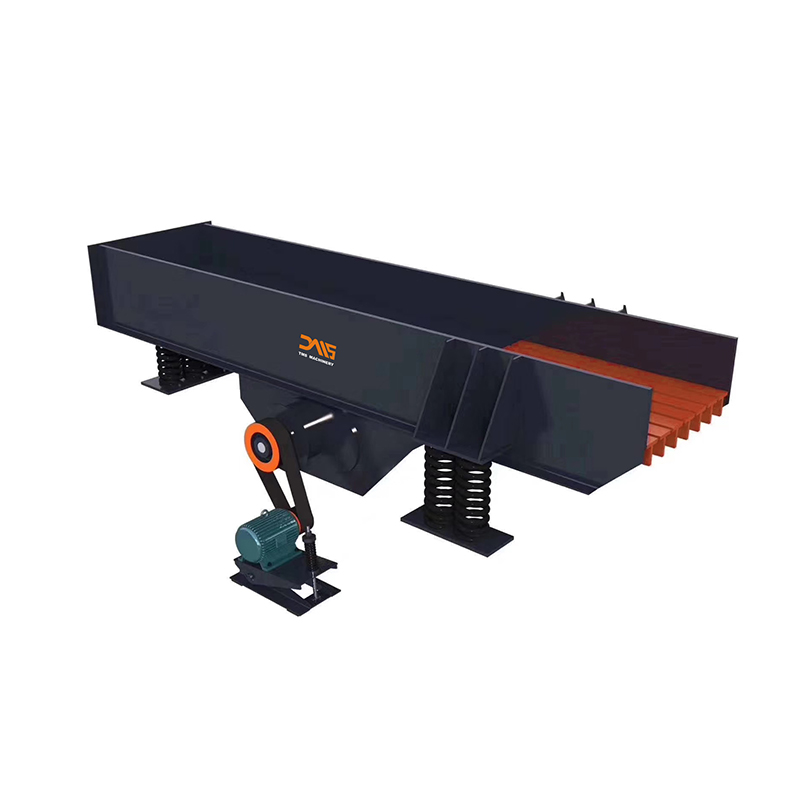

The motor of the vibrating feeder drives two meshed eccentric shafts to rotate through a triangle belt, thereby generating a synthetic linear excitation force, which forces the body to vibrate on the support spring, and the material uses this vibration as power to move in the trough. It performs sliding and throwing motions to move the material forward to achieve the purpose of feeding. When materials pass through the screen bars on the tank body, smaller materials can fall through the gaps between the screen bars to play a screening role.

Performance characteristics

1. The vibration is stable and the feeding is continuous and even.

2. Pre-screen fine materials while feeding to improve crushing efficiency.

3. Low noise and low power consumption.

4. High work efficiency and large feeding capacity.

Technical Parameters

Model	Max. feeding size (mm)	Processing capacity(t/h)	Motor power	Obliquity of material trough	Trough Size	Dimension
	Max. feeding size (mm)	Processing capacity(t/h)	Motor power	Obliquity of material trough	Trough Size	Dimension
	(mm)	(t/h)	(kw)	(°)	(mm)	(mm)
GZD-650×2300	300	80-100	1.2×2	10-20	650×2300	2300×1360×780
GZD-750×2500	350	100-130	1.5×2	10-20	750×2500	2500×1460×780
GZD-850×3000	400	120-150	3×2	10-20	850×3000	3110×1800×1600
GZD-1000×3600	500	150-200	3.7×2	10-20	1000×3600	3850×1950×1630
GZD-1100×3600	580	240-300	3.7×2	10-20	1100×3600	3600×2050×1660
GZD-1300×3600	650	450-600	7.5×2	10-20	1300×3600	3900×2350×1750
GZD-1500×3600	1050	450-1000	7.5×2	10-20	1500×3600	3900×2000×1750
GZD-2000×3600	1200	550-1000	10×2	10-20	2000×3600	3600×2000×1750
GZD-2500×5000	1500	650-1500	18×2	10-20	2500×5000	5000×2500×1800
ZSW-380×95	500	100-180	11	0-10	3800×960	3920×1640×1320
ZSW-490×110	630	150-400	15	0-10	4900×1100	4980×1830×1320
ZSW-490×130	750	400-700	22	0-10	4900×1300	4980×2580×2083
ZSW-600×130	750	400-700	22	0-10	6000×1300	6082×2580×2083
ZSW-600×150	800	500-900	30	0-10	6000×1300	6086×2662×1912
ZSW-600×180	900	700-1300	45	0-10	6000×1500	6310×3262×2230
ZSW-600×200	1200	800-1500	55	0-10	6000×2000	6310×3462×2230

Note: Technical data are subject to change without prior notice.
