Mobile Crusher

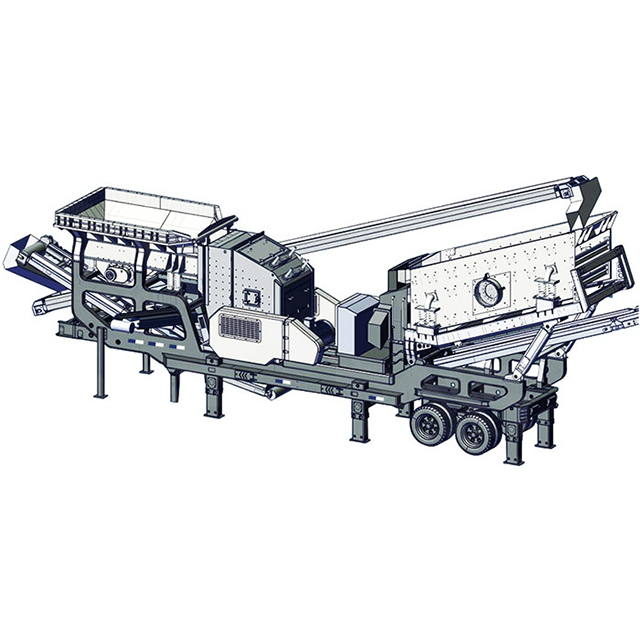

The series mobile crushing station is a crushing and screening production line that is reasonably combined with crushing, screening and other equipment and a tire-type trailer. It can be flexibly moved according to changes in the production site.
Feed particle size: ≤630mm
Production capacity: 90-500t/h
Description
Description

working principle
During the working process of the mobile crushing station, the external power supply is usually used as the power source. The raw materials are evenly sent to the jaw crusher or impact crusher by the vibrating feeder for coarse crushing operation. The coarsely crushed materials are sent by the belt conveyor. It enters the cone crusher or impact crusher for further crushing. The finely crushed materials are transported to the vibrating screen for screening. The materials that meet the particle size requirements of the finished product are output by the finished product conveyor belt as the finished product; the materials that do not meet the particle size requirements of the finished product are From the vibrating screen, it is returned to the sand making machine or cone crusher for reprocessing, forming a closed circuit for multiple cycles. It can be combined and graded according to the customer's requirements for stone particle size and output.

Performance characteristics

1. Strong adaptability, flexibility and ability to quickly enter working mode.

2. The use of standard tire axles and traction steering axles is more conducive to road transportation transitions.

3. The structure is compact in design, saving space and reducing the area occupied by the production site.

4. The equipment process is reasonable and smooth, the selection and matching are high, and the operation efficiency is high.

5. The equipment foundation treatment is simple and fast, greatly reducing the civil construction period.

6. Installation is quick and easy, safe and efficient.

7. It can be quickly transferred and reinstalled according to construction needs.

8. Complete supporting facilities, production can be started immediately after being connected to electricity.

9. The configuration and combination are flexible. It can operate independently as a single machine, or it can be combined into a multi-stage crushing and screening system with coarse crushing, medium crushing, fine crushing and screening.

Technical Parameters

MOBILE JAW CRUSHER TECHNICAL PARAMETERS

Model

FTM938HD80

FTM1149HD98

FTM1349HD110

FTM1349HD125

Jaw Crusher

HD80

HD98

HD110

HD125

Maximum Feeding Size (mm)

500

550

660

800

Capacity (t/h) |

85-275

110-350

215-510

280-650



CONE CRUSHER & VIBRATING SCREEN TECHNICAL PARAMETERS

Model

FTM3S154PSG09

FTM3S185PSG130

FTM3S216HP300

Weight(t)

34.5

49.5

41

Cone crusher

PSG09

PSG130

HP300

Discharging belt conveyor

B650x 15M x2

B800x 15Mx2

B800x 15Mx2



MOBILE IMPACT CRUSHER TECHNICAL PARAMETERS

Model

FTM938F1210 FTM938FW1214


FTM1149F1315

FTM1349HD1110

Weight(t)

39

44

54

62

Tire Configuration

PF-1210

PF-1214

PF-1315

HD1110

The Maximum Feeding Size(mm)

350

350

500

400

Capacity(t/h)

70-130

100-180

130-250

112



IMPACT CRUSHER & VIBRATING SCREEN TECHNICAL PARAMETERS

Model

FTM3S184F210

FTM3S185F214

FTM3S216F315

FTM3S184HD1110


Tyre Configuration

biax fitted

triaxial fitted

triaxial fitted

triaxial fitted


Impact crusher

PF-1210

PF-1214

PF-1315

HD 1110


Note: processing capacity may vary with different materials and feeding sizes.
