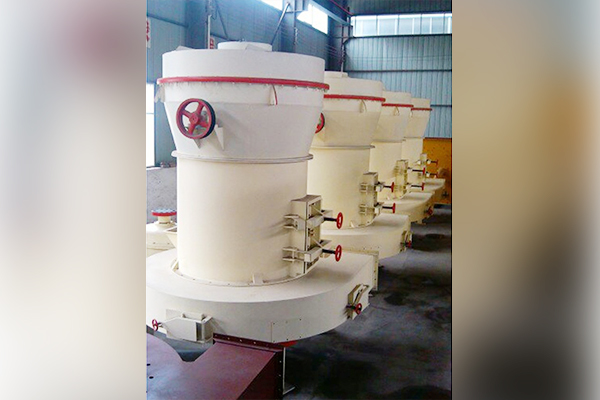

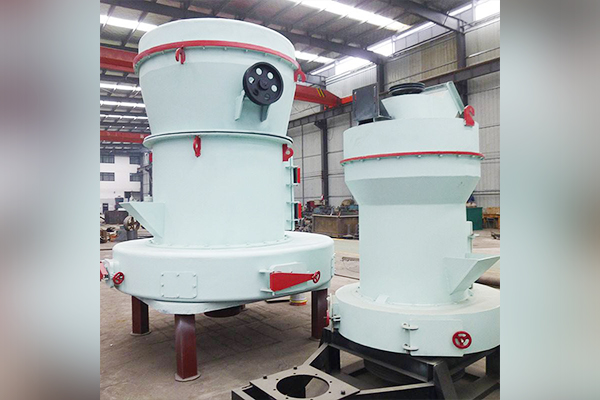

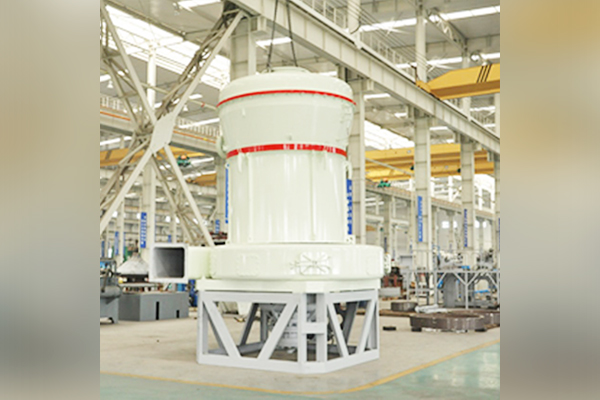

working principle
After the materials to be processed by the Raymond mill enter the grinding chamber of the main machine of the Raymond mill, due to the centrifugal force when the spindle rotates, the grinding roller swings outward and is pressed against the grinding ring. The shovel blade scoops up the materials and sends them to the grinding roller and grinding ring. In between, the purpose of grinding and crushing is achieved with the rolling of the grinding roller. After the material is ground, the powder passes through the analyzer with the blower circulating air for sorting. The fine and too coarse material falls back to the grinding chamber for re-grinding. The qualified fine powder enters the cyclone powder collector with the air flow and is discharged through the powder outlet pipe to become the finished product. The airflow passes through the cyclone powder collector and then enters the blower to form a closed loop, so that the machine can work continuously and normally. The residual air enters the dust collector through the residual air duct and is purified before being discharged out of the machine.
working principle
Technical Parameters
1. The whole machine has a three-dimensional structure, occupies a small area, and is highly systematic. It can form an independent production system from rough processing of raw materials to transportation to powdering and final packaging.
2. The finished powder has uniform fineness and a sieving rate of 99%, which is difficult to achieve with other grinding equipment.
3. The machine transmission device adopts a closed gear box and pulley, which ensures smooth transmission and reliable operation.
4. The important parts of the Raymond mill are all made of high-quality steel, and the wear-resistant parts are all made of high-performance wear-resistant materials. The whole machine has high wear resistance and reliable operation. The blade holder of the main engine is always in contact with the material during operation, so the blade holder is composed of upper and lower parts. After the lower seat is worn, the connecting bolts can be removed and replaced.
5. The electrical system adopts centralized control, and the grinding workshop can basically realize unmanned operation and is easy to maintain.
6. Little dust pollution and low noise.
7. The electromagnetic vibrating feeder is used to feed materials evenly, is easy to adjust, is small in size, light in weight, saves fuel and electricity, and is easy to maintain.
Technical Parameters
Model | 4525 | 4119 |
Feeding Size(mm) | ≤30 | ≤25 |
Output Size(mm) | 0.173-0.044 | 0.173-0.044 |
Shift Output of Different Material Fineness(t) | 16-176 | 8-78 |
Rotation Speed of Central Shaft(r/min) | 82 | 105 |
Ring Diameter(mm) | 1770 | 1400 |
Roller Diameter(mm) | 450 | 410 |
Roller Height(mm) | 250 | 190 |
Main Motor(kw) | Y315M-4-132 | Y280S-4-75 |
Fan Motor | Y315M-4-132 | Y280S-4-75 |
Analyzer Motor | YCT250-4A-18.5 | YCT200-4B-7.5 |
Note: Technical data are subject to change without prior notice.
